Flexible dies

Download: Datasheet Order form

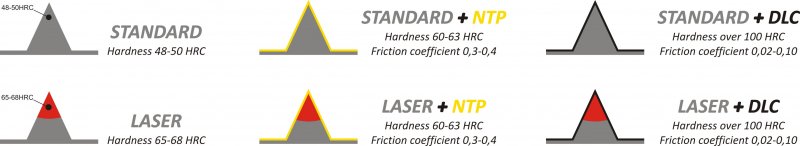

STD

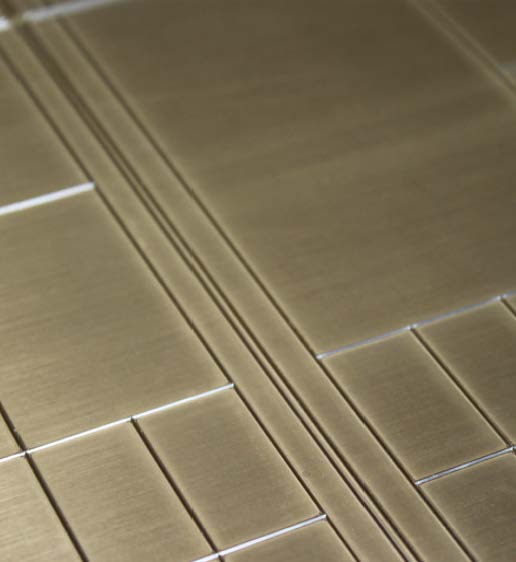

The standard quality meets the most stringent demands for use on all types of self-adhesive materials: Paper, PP, PE, PVC, PET, Tyvek etc. Finishing options are NTP and DLC. Hardness of cutting edges: 48-50 HRC

LSR

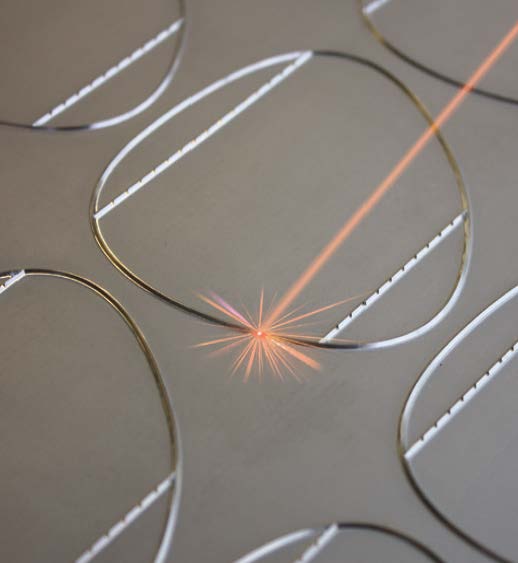

Suitable for very large print quantities. For standard and all special materials. Is generally recommended for cutting through and maximal lifetime. Finishing options are NTP and DLC. Hardness of cutting edges: 65-68 HRC

NTP

Standard or laser hardened flexible die with a very hard coating NTP, ideal for the abrasive thermal (thermal transfer) papers and cardboard. A thick layer of NTP enables extremely high running performances with outstanding wear properties. Hardness of cutting edges: 60-63 HRC

DLC

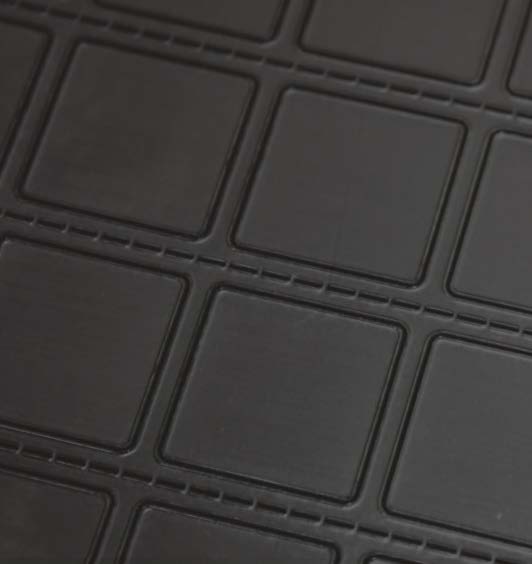

Standard or laser hardened flexible die with a very hard and non-stick coating DLC, ideal for the separation of inks and adhesives, combined with a very long life. Hardness of cutting edges: over 100HRC

Our cutting dies are made of high-strength steel using up-to-date CNC technologies. We guarantee the maximum achievable tolerances, maximum service life and economical operation when used on all types of cutting equipment (rotary, semi-rotary, flat).

Even our standard quality complies with all the high requirements for quality.

We can of course produce any customized cut-out shapes, their combinations, sharp corners, perforation and any number of heights.

Cutting dies for:

all types of self-adhesive materials
all types of layered (sandwich) materials and single-layer film
booklet labels
envelopes and forms
light cardboard, tickets, incl. blowing out the cut-out waste

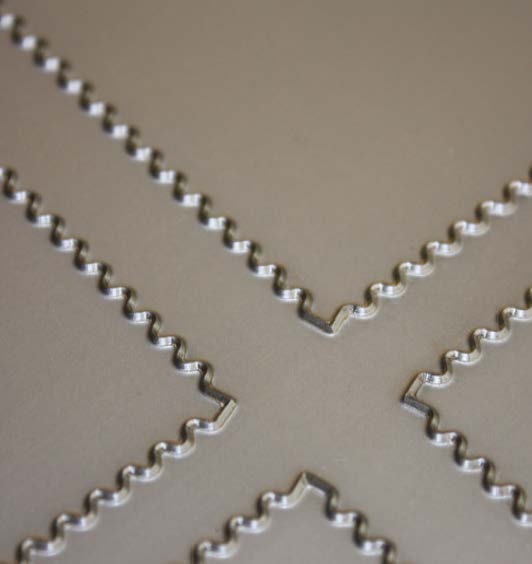

security cuts, perforation and micro-perforation (min. 0.2:0.2mm)
endless cut-outs with a minimum gap of 0.2mm
creasing and embossing

We produce cutting dies with a blade height of up to 1.00mm and cutting angles of 50°- 110°. The blade height is produced with a tolerance of +/- 0.002mm and a planar tolerance of +/- 0.002mm.
